SKF SY1.TF 2 Bolt Pillow Block Bearing
£36.86
£30.72
In stock
SKU
SY1.TF
Bore Size: 1" (25.4mm)
Housing Length: 5.12" (130mm)
Housing Width: 1.42" (36mm)
Bolt Hole Centres: 4.02" (102mm)
Housing Length: 5.12" (130mm)
Housing Width: 1.42" (36mm)
Bolt Hole Centres: 4.02" (102mm)

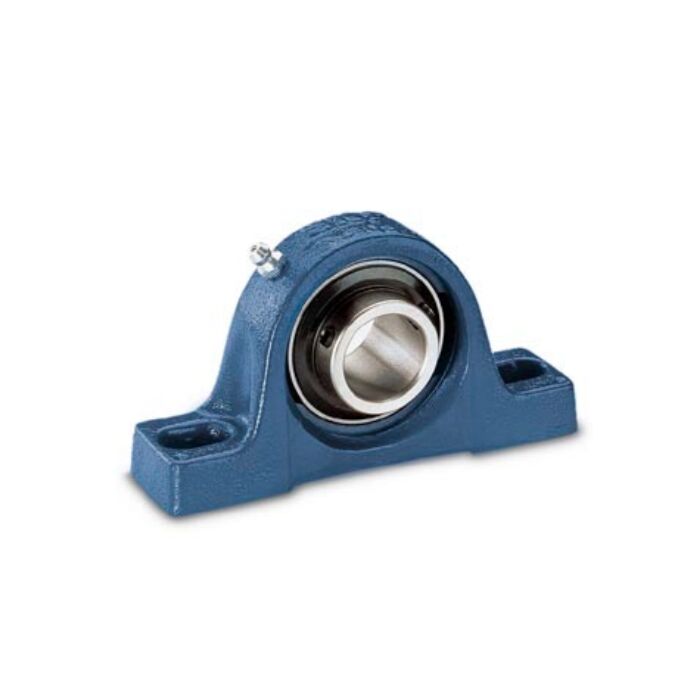

SY1.TF SKF 1inch Bore Y-bearing Plummer Block - Cast Housing & Grub Screws
Bolt Hole Dia (N): 0.77inch (19.5mm)
Limiting Speed: 7000r/min
Shaft Centre Height (H1): 1.44inch (36.5mm)
Bore Size (d): 1inch (25.4mm)
Bolt Hole Centres (J): 4.02inch (102mm)
Housing Length (L): 5.12inch (130mm)
Housing Width (A): 1.42inch (36mm)
Overall Height (H): 2.78inch (70.5mm)
Bolt Hole Dia (N): 0.77inch (19.5mm)
Limiting Speed: 7000r/min
Shaft Centre Height (H1): 1.44inch (36.5mm)
Bore Size (d): 1inch (25.4mm)
Bolt Hole Centres (J): 4.02inch (102mm)
Housing Length (L): 5.12inch (130mm)
Housing Width (A): 1.42inch (36mm)
Overall Height (H): 2.78inch (70.5mm)
