- SPZX1162 (9.7x1162 Lp) Cogged Wedge Belt
Customers Who Bought This Item Also Bought
-
SPZ1171 (9.7x1171 Lp) Wedge Belt
The SPZ1171 Wedge Belt manufactured by PIX has a top width of 10mm, an inside le...Excl. VAT £4.29 Incl. VAT £5.15 -
SPZX1180 (9.7x1180 Lp) Cogged Wedge Belt
The SPZX1180 Cogged Wedge Belt manufactured by PIX has a top width of 10mm, an i...Excl. VAT £4.53 Incl. VAT £5.44
Product Description
Technical Dimensions

Reviews (1)
Questions (0)

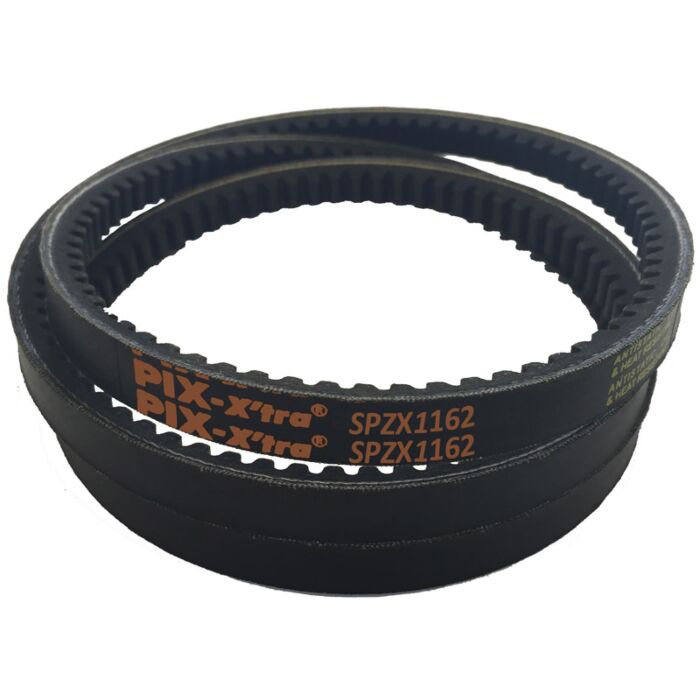

The SPZX1162 Cogged Wedge Belt manufactured by PIX has a top width of 10mm, an inside length of 1124mm, and an outside length of 1175mm.
Wedge Belts are the second most common type of belt. They are slightly deeper than V Belts which gives them more surface contact with the pulleys which in turn increases the power they can transmit. Wedge Belts provide the best combination of traction, speed of movement, load of the bearings and lastly, maintain a long service life, therefore making them very cost effective.
Wedge Belts are a trapezium shape section reinforced on the outer edge with a heat-set, pre-stretched Polyester cord. The Polyester cording carries high horsepower loads and minimises stretch which means the Wedge Belt will require fewer take up adjustments.
We stock a great range of lengths in all sections, however if you have any difficulties finding a specific length, please contact our sales team and they will gladly assist.
Wedge Belts are the second most common type of belt. They are slightly deeper than V Belts which gives them more surface contact with the pulleys which in turn increases the power they can transmit. Wedge Belts provide the best combination of traction, speed of movement, load of the bearings and lastly, maintain a long service life, therefore making them very cost effective.
Wedge Belts are a trapezium shape section reinforced on the outer edge with a heat-set, pre-stretched Polyester cord. The Polyester cording carries high horsepower loads and minimises stretch which means the Wedge Belt will require fewer take up adjustments.
We stock a great range of lengths in all sections, however if you have any difficulties finding a specific length, please contact our sales team and they will gladly assist.

Section | SPZ Section |
Top Width (W) | 9.7mm |
Pitch Width | 8.5mm |
Bottom Width | 4.5mm |
Depth (H) | 8mm |
Inside Length | 1124mm |
Pitch Length | 1162mm |
Outside Length | 1175mm |
Smooth/Cogged | Cogged |
-
Review by ronk1607
Quality Price Value Good item. Fast delivery. Would definitely use again. (Posted on 11/09/2014)
Questions:
There are no product questions yet.
