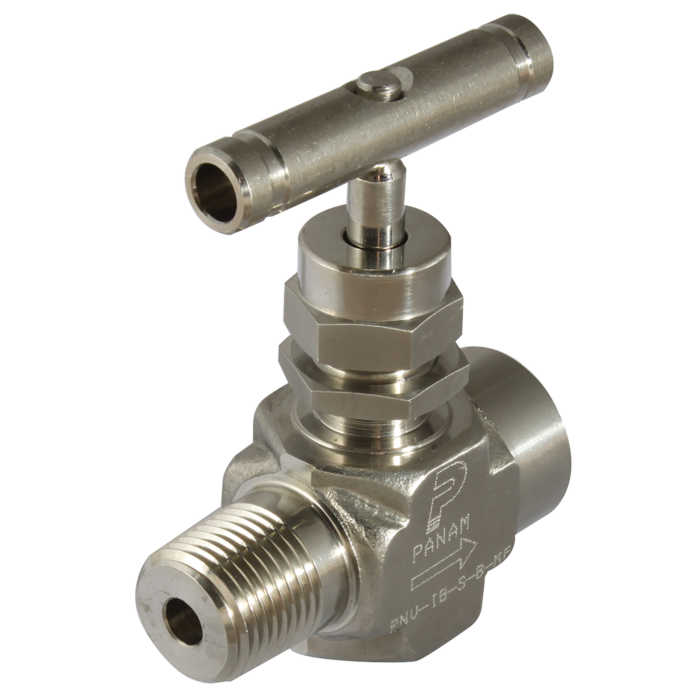

PNV-HP-S-6-MF

3/8" NPTF M/F 10000PSI 316SS NEEDLE VAL
The 'HP' series of needle valves are specially designed and manufactured for us in corrosive and hazardous environments. These valves are for use in process control, instrumentation and flow control applications. Feature Benefits: One piece body construction for strength and safety. Non rotating Vee tip design, which forms a bearing joint with the stem eliminating any rotation between the plug and seat on closure ensuring long life. Testing: Each valve is hydrostatically tested in accordance with MSS-SP-99. This procedure includes testing of the body cavity. A Hydrostatic test is performed with pure water or other liquids of similar or lower viscosity at 1.5 times and seat leakage test at 1.1 times of the maximum working pressure. Each valve is also tested with nitrogen gas at 1000psi for seat, seal and shell leakage. Other tests like vibration, temperature, helium are available upon request. Material: Body, stem, packing washer, lock nut & gland retainer A479-316/A-105. Gland Packing: Glass Filled PTFE. Packing: PTFE Handle: Stainless Steel. Dust Cap: Plastic. Vee Tip: A 564-630
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PNV-HP-S-6-MF Range of Stainless Steel Check Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS2157
