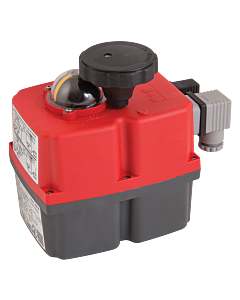

J4CS140

140NM ON-OFF 24-240V VDC/VAC 50/60HZ
Features: IP67 fully weatherproof polyamide PA6 housing. Multicoloured LED light for continuous status feedback for the user. Auto voltage sensing 24-240V DC/V AC 50/60Hz. A 12V DC/V AC 50/60Hz option is also available on request (J4CB). The J4CS series has brushless motor technology with each unit now having a 3 year warranty from shipment date or up to 60,000 working cycles, whichever comes first. Electronic torque limiter with auto gearbox relaxing. Thermostatic 3.5W anti-condensation heater. Local dome style visual position indicator. Handwheel operated selectable manual override. Two volt free end of travel position confirmation switches. All external electrical connections via DIN plugs. Large Plug EN175301-803 Form A, small plug DIN 43650/C. External wiring diagram showing 2 and 3 wire. Multi-flange mounting to ISO 5211 and DIN 3337. Duty rating 75%. Options: Failsafe battery 'spring' return backup kit. DPS modulating digital positioner system kit. Interface system kit allowing communication with the actuator, read parameters and change the actuator configurations. Bluetooth technology. Modbus technology. Digital potentiometer available in 1k, 5k or 10k. 3 position actuator available in 0ﾰ-45ﾰ-90ﾰ or 0ﾰ-90ﾰ-180ﾰ.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the J4CS140 Range of Electric Actuator.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
