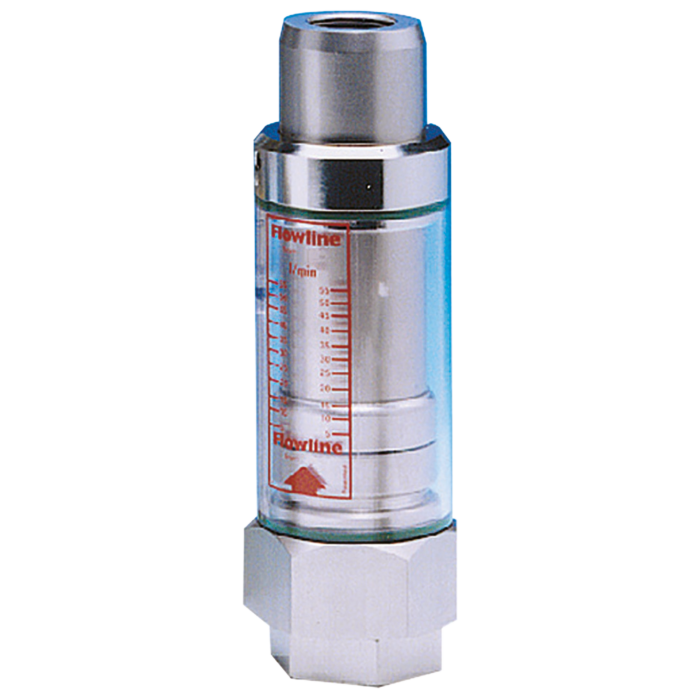

FM26332112

OIL 3/4"BSP 5-55L/MIN 350 W/P BAR
For flow measurement of corrosive or chemical media. Manufactured in Stainless Steel 316. Works in any position. Pressure up to 350 bar (5000psi). Flows up to 360 L/min. Direct Reading, Construction: Stainless Steel to BS970 316S. Calibration: Oil = Specific gravity 0.856 at 20ﾰC, Water = Specific gravity 1.0 at 20ﾰC. Viscosity Range: 10-200 centistrokes. Seal: Viton. Wetted Parts: Body, Thread, Adaptor, Piston etc: Cone Locknut Stainless Steel BS 970316S 16.Magnet Encapsulation: Stainless Steel BS970/1: 1991:316S31. Spring:Stainless Steel to BS2056 EN58J
BearingShopUK holds a large stock of Hydraulic equipment, including the FM26332112 Range of Flow Meter.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
