DBD311

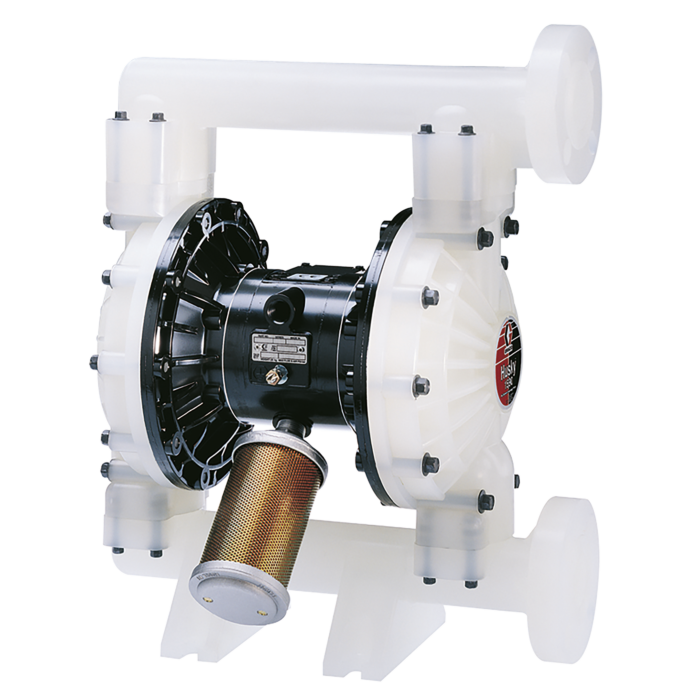

HUSKY 1590 PUMP PTFE DIA ST.ST. BODY
Typical Applications: Filter press. Tank stripping. Bilge pumping. Sand and ball mill pumping. Oil transfer and oil skimming. Chemical plating. Typical Fluids Handled: Latex. Corrosive fluids. Acids: hydrochloric, ferric, sulfuric, nitric and phosphoric. Slurries: petroleum, lime, clay, ferrite, salt/brine and pumice. Sludge: secoandary and clarifier. Pottery slip. Features: 1.1/2" (38.1mm) ANSI end-porting. High flow - 100gpm (378 L/min) in a compact, portable size. Fluid pressure to 120 psi (8.4 bar, 0.84 MPa). Lube-free operation. Patented, high-reliability "closed centre" air valve is "online" serviceable. Epoxy-coated air section for tough enviromental conditions. Can also be remotely-controlled using an external controller.
BearingShopUK holds a large stock of Industrial equipment, including the DBD311 Range of Diaphragm.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
