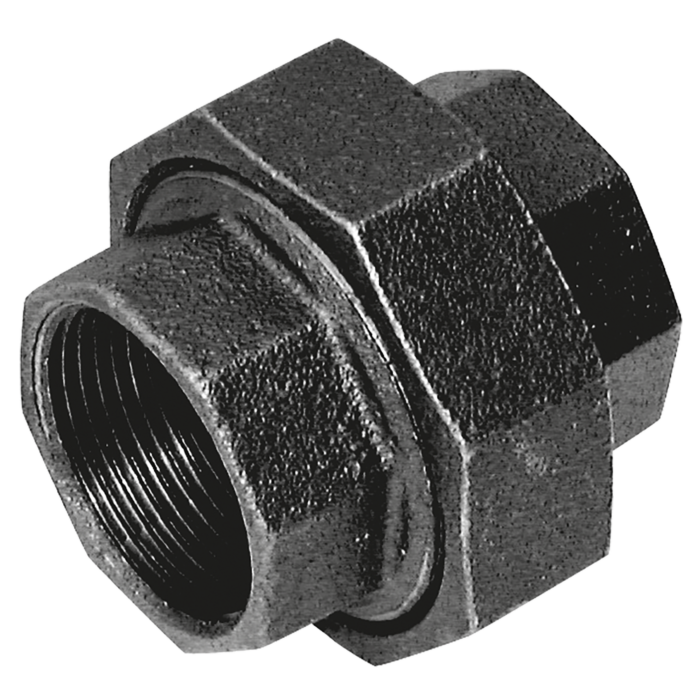

C256-14N

1/4" BSPT FEM EQUAL UNION FIG256 BLACK
Malleable Iron Fittings Suitable for Use with Drinking Water. Crane kitemarked fittings are deemed to satisfy the requirements of the United Kingdom Water Regulations (Byelaws). Material: Crane malleable iron is of the Blackheart type ideally suited to pipe fitting and manufacture and conforms to BSEN1562 Designation EN-GJMB-300-6, ASTM A197 and ISO 5922. Galvanised Finish: Hot dip zinc coated (galvanised) prior to machining. Coating conforms to BSEN ISO1461 1998 and ASTM 153. Thread: Taper threads to BS21 (ISO 7). Media: Suitable for transfer or flow of water, steam, gas and other non aggressive media. BSI Kitemark approved. PN25.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the C256-14N Range of Union.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS20765
