BF0404-400

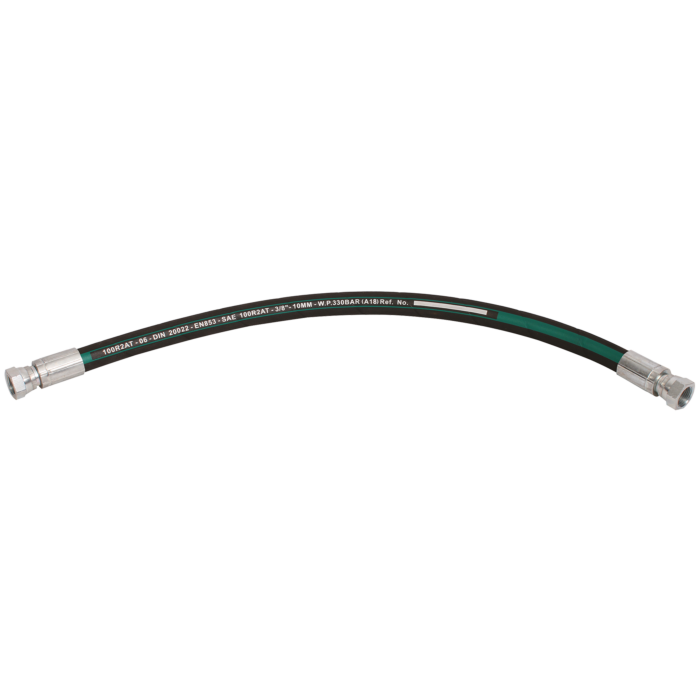

1/4" BSP Female x 15.7mm OD x 1/4" ID Hydraulic Hose Assembly
Construction: Symthetic rubber black tube, oil resistant: two high tensile steel wire braids reinforcement separated by sythentic rubber layer: sythetic rubber black outer coverr, oil, fuel, weather, ozone and abrasion resistant. Application: high pressure servie with petroleum bas hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, hot oil, grease, lubricants, crude and fuel oils, air and water. For air and gas application above 17 bar (250psi) the cover should be pin-pricked. MHSA accepted cover on request. A high quality range of flexible hydraulic assemblies with compact end fittings in BSPP 60ﾰ Cone and JIC 37ﾰ cone termination. Each assmebly is manufactured from hydrualic hose manufactured to DIN 20022 with two peice fittings. Couplings: permanent crimp-on.
BearingShopUK holds a large stock of Hydraulic equipment, including the BF0404-400 Range of Steel Braided.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
