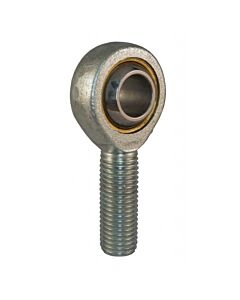

Rod End Bearings
Referred to as a "Rose Joint" in the UK and also known as a "Heim Joint" after its inventor, Rod End Bearings are another popular type of Bearing in used many industrial, automotive, and agricultural applications, as well as being a mechanical element in medical equipment.
Used on the ends of control rods, tie rods, and steering links, Rod End Bearings are also used anywhere else where mechanical precision is of great importance. Composed of a casing, a ball swivel, an opening for attaching hardware, and a threaded shaft, our Rod End Bearings at Bearing Shop UK are available in Metric or Imperial threads and in different bore sizes. We also offer Right Hand and Left Hand, Female and Male Rod End Bearings depending on your needs.
For more mechanical bearing options and similar products like Ball Bearings, V Pulleys, V Belts, and more. Check our full catalogue here.
Can't find what you're looking for? – Contact us.
-
Dunlop MP-08-7F Male Rodend Bearing Maintenance Free 7/16" bore 1/2 BSF RH thread£52.43 £43.69Brand: Dunlop
Style: Male
Bore: 11.11mm (7/16")
Thread: 1/2" BSF Right Hand
Material: Steel/Nylon
Learn More -
RSMX7T (RMX7T) 7/16" 3 Piece Heavy Duty Male Rodend Bearing 1/2UNF Right Hand Thread Steel/PTFE£43.63 £36.36Bore: 11.11mm
Ball Width: 0.562"
Housing Width: 0.437"
Thread: 1/2 UNF Left Hand
Measurement Unit: Imperial
Contact Material: Steel/PTFE
Learn More -
RSMXL7T 7/16" 3 Piece Heavy Duty Male Rodend Bearing 1/2UNF Left Hand Thread Steel/PTFE£47.00 £39.17Bore: 11.11mm
Ball Width: 0.562"
Housing Width: 0.437"
Thread: 1/2 UNF Right Hand
Measurement Unit: Imperial
Contact Material: Steel/PTFE
Learn More -
Dunlop MPL-07F Male Rodend Bearing Maintenance Free 7/16" bore 7/16 BSF LH thread£24.54 £20.45Brand: Dunlop
Style: Male
Bore: 11.11mm (7/16")
Thread: 7/16" BSF Left Hand
Material: Steel/Nylon
Learn More -
Dunlop MP-07F Male Rodend Bearing Maintenance Free 7/16" bore 7/16 BSF RH thread£24.70 £20.58Brand: Dunlop
Style: Male
Bore: 11.11mm (7/16")
Thread: 7/16" BSF Right Hand
Material: Steel/Nylon
Learn More -
MSL-07 Male Rodend Bearing Maintenance Free 7/16" bore 7/16 UNF LH thread£26.27 £21.89Bore: 11.11mm
Ball Width: 14.27mm
Housing Width: 11.10mm
Thread: 7/16 UNF Left Hand
Measurement Unit: Imperial
Contact Material: Steel/PTFE
Learn More -
Dunlop MPL-07 Male Rodend Bearing Maintenance Free 7/16" bore 7/16 UNF LH thread£13.97 £11.64Brand: Dunlop
Style: Male
Bore: 11.11mm (7/16")
Thread: 7/16" UNF Left Hand
Material: Steel/Nylon
Learn More -
LDK POSB7L 7/16" Imperial Male Rodend 7/16UNF Left Hand Steel/Brass£12.14 £10.12Brand: LDK
Bore: 11.11mm
Ball Width: 14.27mm
Housing Width: 11.10mm
Thread: 7/16 UNF Left Hand
Overall Height: 68.27mm
Measurement Unit: Imperial
Contact Material: Steel/Brass
Learn More -
MS-07 Male Rodend Bearing Maintenance Free 7/16" bore 7/16 UNF RH thread£29.84 £24.87Bore: 11.11mm
Ball Width: 14.27mm
Housing Width: 11.10mm
Thread: 7/16 UNF Right Hand
Measurement Unit: Imperial
Contact Material: Steel/PTFE
Learn More -
Dunlop MP-07 Male Rodend Bearing Maintenance Free 7/16" bore 7/16 UNF RH thread£15.48 £12.90Brand: Dunlop
Style: Male
Bore: 11.11mm (7/16")
Thread: 7/16" UNF Right Hand
Material: Steel/Nylon
Learn More
