Rod End Bearings
Referred to as a "Rose Joint" in the UK and also known as a "Heim Joint" after its inventor, Rod End Bearings are another popular type of Bearing in used many industrial, automotive, and agricultural applications, as well as being a mechanical element in medical equipment.
Used on the ends of control rods, tie rods, and steering links, Rod End Bearings are also used anywhere else where mechanical precision is of great importance. Composed of a casing, a ball swivel, an opening for attaching hardware, and a threaded shaft, our Rod End Bearings at Bearing Shop UK are available in Metric or Imperial threads and in different bore sizes. We also offer Right Hand and Left Hand, Female and Male Rod End Bearings depending on your needs.
For more mechanical bearing options and similar products like Ball Bearings, V Pulleys, V Belts, and more. Check our full catalogue here.
Can't find what you're looking for? – Contact us.
-

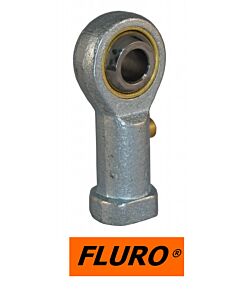

GISW6 6mm Female Rodend Bearing M6 Right Hand Steel/PTFE Fluro£23.78 £19.82Brand: Fluro
Bore: 6.00mm
Ball Width: 9mm
Housing Width: 20mm
Thread: M6 Right Hand
Overall Height: 40mm
Measurement Unit: Metric
Contact Material: Steel/PTFE
Learn More -
LDK PHS6ECL 6mm Female Rodend Bearing LH Steel/PTFE£9.55 £7.96Brand: LDK
Bore: 6.00mm
Ball Width: 9mm
Housing Width: 6.75mm
Thread: M6 Left Hand
Overall Height: 39mm
Measurement Unit: Metric
Contact Material: Steel/PTFE
Learn More -
GI6 6mm Female Rodend Bearing M6 Right Hand Steel/Brass Fluro£13.50 £11.25Brand: Fluro
Bore: 6.00mm
Ball Width: 9mm
Housing Width: 20mm
Thread: M6 Right Hand
Overall Height: 40mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
LDK PHS6L 6mm Female Rodend Bearing£4.01 £3.34Brand: LDK
Bore: 6.00mm
Ball Width: 9mm
Housing Width: 6.75mm
Thread: M6 Left Hand
Overall Height: 39mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
JFXL4T 1/4" 3 Piece Female Rodend Bearing 1/4UNF Left Hand Thread Steel/PTFE£24.23 £20.19Bore: 6.35mm
Ball Width: 9.53mm
Housing Width: 7.14mm
Thread: 1/4 UNF Right Hand
Measurement Unit: Imperial
Contact Material: Steel/PTFE
Learn More -
FS-04 Female Rodend Bearing Maintenance Free 1/4" bore 1/4 UNF RH thread£21.13 £17.61Bore: 6.35mm
Ball Width: 9.53mm
Housing Width: 7.14mm
Thread: 1/4 UNF Right Hand
Measurement Unit: Imperial
Contact Material: Steel/PTFE
Learn More
