Rod End Bearings
Referred to as a "Rose Joint" in the UK and also known as a "Heim Joint" after its inventor, Rod End Bearings are another popular type of Bearing in used many industrial, automotive, and agricultural applications, as well as being a mechanical element in medical equipment.
Used on the ends of control rods, tie rods, and steering links, Rod End Bearings are also used anywhere else where mechanical precision is of great importance. Composed of a casing, a ball swivel, an opening for attaching hardware, and a threaded shaft, our Rod End Bearings at Bearing Shop UK are available in Metric or Imperial threads and in different bore sizes. We also offer Right Hand and Left Hand, Female and Male Rod End Bearings depending on your needs.
For more mechanical bearing options and similar products like Ball Bearings, V Pulleys, V Belts, and more. Check our full catalogue here.
Can't find what you're looking for? – Contact us.
-
GI12 12mm Female Rodend Bearing M12 Right Hand Steel/Brass Fluro£23.77 £19.81Brand: Fluro
Bore: 12.00mm
Ball Width: 16mm
Housing Width: 32mm
Thread: M12 Right Hand
Overall Height: 66mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -

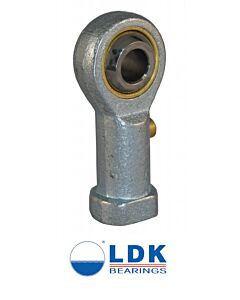

LDK PHS12L 12mm Female Rodend Bearing£5.60 £4.67Brand: LDK
Bore: 12.00mm
Ball Width: 16mm
Housing Width: 12mm
Thread: M12 Right Hand
Overall Height: 65mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
LDK PHS12L-F2 12mm Female Rodend Bearing£7.74 £6.45Brand: LDK
Bore: 12.00mm
Ball Width: 16mm
Housing Width: 12mm
Thread: M12X1.25 Left Hand
Overall Height: 65mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
LDK SPHS12EC 12mm Stainless Steel/PTFE Female Rodend M12 Right Hand£42.89 £35.74Brand: LDK
Bore: 12.00mm
Ball Width: 16mm
Housing Width: 12mm
Thread: M12 Right Hand
Overall Height: 65mm
Measurement Unit: Metric
Contact Material: Stainless Steel/PTFE
Learn More -
LDK SPHS12ECL-F 12mm Stainless Steel/PTFE Female Rodend M12x1.25 Left Hand£41.75 £34.79Brand: LDK
Bore: 12.00mm
Ball Width: 16mm
Housing Width: 12mm
Thread: M12x1.25 Right Hand
Overall Height: 65mm
Measurement Unit: Metric
Contact Material: Stainless Steel/PTFE
Learn More -

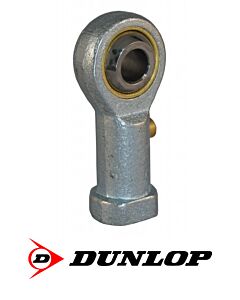

Dunlop FP-M12C-SS Female Rodend Bearing Stainless Steel 12mm bore M12X1.25 RH thread£34.45 £28.71Brand: Dunlop
Style: Female
Bore: 12mm
Thread: M12 Right Hand
Material: Stainless Steel/Nylon
Learn More
