Rod End Bearings
Referred to as a "Rose Joint" in the UK and also known as a "Heim Joint" after its inventor, Rod End Bearings are another popular type of Bearing in used many industrial, automotive, and agricultural applications, as well as being a mechanical element in medical equipment.
Used on the ends of control rods, tie rods, and steering links, Rod End Bearings are also used anywhere else where mechanical precision is of great importance. Composed of a casing, a ball swivel, an opening for attaching hardware, and a threaded shaft, our Rod End Bearings at Bearing Shop UK are available in Metric or Imperial threads and in different bore sizes. We also offer Right Hand and Left Hand, Female and Male Rod End Bearings depending on your needs.
For more mechanical bearing options and similar products like Ball Bearings, V Pulleys, V Belts, and more. Check our full catalogue here.
Can't find what you're looking for? – Contact us.
-

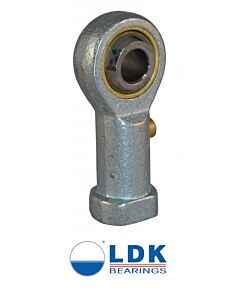

LDK PHS10F1 10mm Female Rodend Bearing£7.30 £6.08Brand: LDK
Bore: 10.00mm
Ball Width: 14mm
Housing Width: 10.5mm
Thread: M10x1.25 Right Hand
Overall Height: 56mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
LDK SPHS10EC 10mm Stainless Steel/PTFE Female Rodend M10 Right Hand£33.53 £27.94Brand: LDK
Bore: 10.00mm
Ball Width: 14mm
Housing Width: 10.5mm
Thread: M10 Right Hand
Overall Height: 56mm
Measurement Unit: Metric
Contact Material: Stainless Steel/PTFE
Learn More -
LDK SPHS10ECL-F 10mm Stainless Steel/PTFE Female Rodend M10x1.25 Left Hand£32.00 £26.67Brand: LDK
Bore: 10.00mm
Ball Width: 14mm
Housing Width: 10.5mm
Thread: M10x1.25 Right Hand
Overall Height: 56mm
Measurement Unit: Metric
Contact Material: Stainless Steel/PTFE
Learn More -

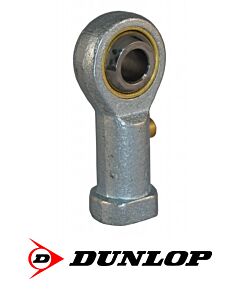

Dunlop FP-M10-SS Female Rodend Bearing Stainless Steel 10mm bore M10X1.5 RH thread£27.77 £23.14Brand: Dunlop
Style: Female
Bore: 10mm
Thread: M10 Right Hand
Material: Stainless Steel/Nylon
Learn More -
Dunlop FP-M10C-SS Female Rodend Bearing Stainless Steel 10mm bore M10X1.25 RH thread£29.05 £24.21Brand: Dunlop
Style: Female
Bore: 10mm
Thread: M10 Right Hand
Material: Stainless Steel/Nylon
Learn More -
GAL8 8mm Male Rodend Bearing M8 Left Hand Thread Steel/Brass Fluro£21.54 £17.95Brand: LDK
Bore: 10.00mm
Ball Width: 14mm
Housing Width: 10.5mm
Thread: M10 Right Hand
Overall Height: 61mm
Measurement Unit: Metric
Contact Material: Steel/PTFE
Learn More
