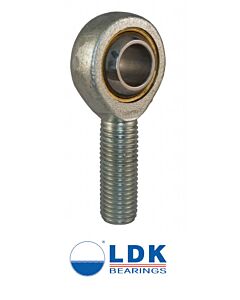

Rod End Bearings
Referred to as a "Rose Joint" in the UK and also known as a "Heim Joint" after its inventor, Rod End Bearings are another popular type of Bearing in used many industrial, automotive, and agricultural applications, as well as being a mechanical element in medical equipment.
Used on the ends of control rods, tie rods, and steering links, Rod End Bearings are also used anywhere else where mechanical precision is of great importance. Composed of a casing, a ball swivel, an opening for attaching hardware, and a threaded shaft, our Rod End Bearings at Bearing Shop UK are available in Metric or Imperial threads and in different bore sizes. We also offer Right Hand and Left Hand, Female and Male Rod End Bearings depending on your needs.
For more mechanical bearing options and similar products like Ball Bearings, V Pulleys, V Belts, and more. Check our full catalogue here.
Can't find what you're looking for? – Contact us.
-
GASW16 16mm Male Rodend Bearing M16 Right Hand Steel/PTFE Fluro£57.53 £47.94Brand: Fluro
Bore: 16.00mm
Ball Width: 21mm
Housing Width: 42mm
Thread: M16 Right Hand
Overall Height: 87mm
Measurement Unit: Metric
Contact Material: Steel/PTFE
Learn More -
LDK POS16EC 16mm Male Rodend Bearing M16 Right Hand Steel/PTFE£24.70 £20.58Brand: LDK
Bore: 16.00mm
Ball Width: 21mm
Housing Width: 15mm
Thread: M16 Right Hand
Overall Height: 85mm
Measurement Unit: Metric
Contact Material: Steel/PTFE
Learn More -
POS16LF1 16mm Male Rodend Bearing M16X1.5 Left Hand Steel/Brass£15.67 £13.06Bore: 16.00mm
Ball Width: 21mm
Housing Width: 15mm
Thread: M16X1.5 Right Hand
Overall Height: 85mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
GAL16 16mm Male Rodend Bearing M16 Left Hand Thread Steel/Brass Fluro£39.85 £33.21Brand: Fluro
Bore: 16.00mm
Ball Width: 21mm
Housing Width: 42mm
Thread: M16 Right Hand
Overall Height: 87mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More -
LDK POS16L 16mm Male Rodend Bearing M16 Left Hand Steel/Brass£14.11 £11.76Brand: LDK
Bore: 16.00mm
Ball Width: 21mm
Housing Width: 15mm
Thread: M16 Right Hand
Overall Height: 85mm
Measurement Unit: Metric
Contact Material: Steel/Brass
Learn More
