910.10.SDP012828
£827.83
£689.86
In stock
SKU
FT-910.10.SDP012828
3/4"BSPT IN X 10 WAY 1/4" BSPT OUT ST.ST
3/4"BSPT IN X 10 WAY 1/4" BSPT OUT ST.ST

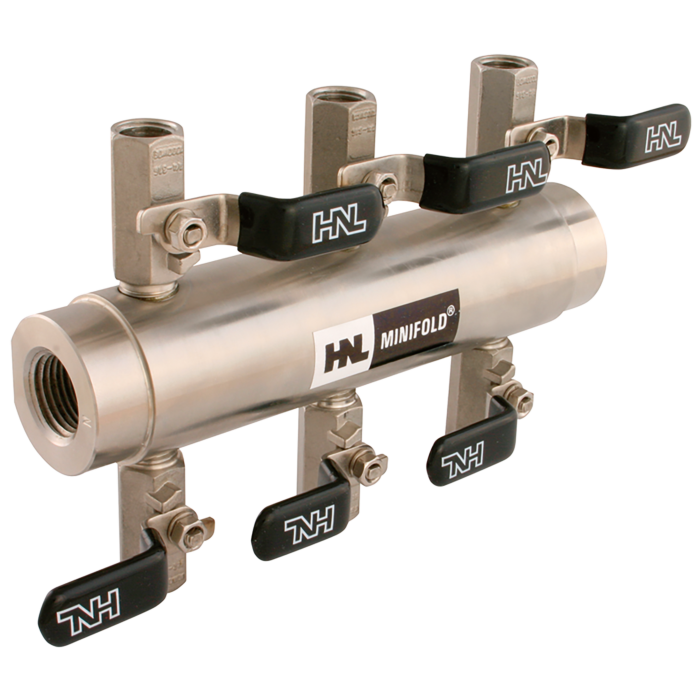

Replace complex assemblies of valves and fittings with stainless steel Manifolds. Each Minifold comprises of a number of ball valves on a common header. Minifold blocks have tapped inlet connections at both ends - connect to one and plug the other or connect Minifold in series. Specifications: Series 910: Nominal Bore 18mm, 1/2ﾂ" or 3/4ﾂ" BSP Taper or NPT inlets. 1/4ﾂ" or 1/2ﾂ" BSP Taper or NPT outlet. Supplied with two mounting brackets. Materials: Blocks: 316 Stainless Steel. Valve Body/Ball: 316 Stainless Steel. Valve Handle: 304 Stainless Steel (Red for BSP, Black for NPT). Valve Seals: PTFE.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 910.10.SDP012828 Range of BSPT Port.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Replace complex assemblies of valves and fittings with stainless steel Manifolds. Each Minifold comprises of a number of ball valves on a common header. Minifold blocks have tapped inlet connections at both ends - connect to one and plug the other or connect Minifold in series. Specifications: Series 910: Nominal Bore 18mm, 1/2ﾂ" or 3/4ﾂ" BSP Taper or NPT inlets. 1/4ﾂ" or 1/2ﾂ" BSP Taper or NPT outlet. Supplied with two mounting brackets. Materials: Blocks: 316 Stainless Steel. Valve Body/Ball: 316 Stainless Steel. Valve Handle: 304 Stainless Steel (Red for BSP, Black for NPT). Valve Seals: PTFE.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 910.10.SDP012828 Range of BSPT Port.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
