61M2P080A0080

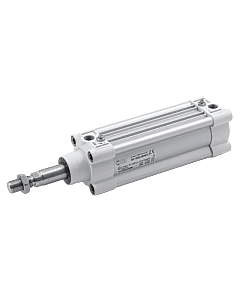

80X80 3/8" BSP DBLE ACT CYLINDER
In compliance with ISO 15552 standards and with the previous DIN/ISO 6431 - VDMA 24562 standards. Rolled stainless steel rod. Clean design with adjustable pneumatic cushioning. Special designs available. Type of construction: with tie-rods (inside the profile). Operation: double-acting, single-acting, tandem. Low friction version: double-acting only. Materials: standard = aluminium end-blocks and piston, rolled stainless steel AISI 420B rod, anodised aluminium tube, zinc-plated steel tie-rods and tie-rod nuts, PU seals Low friction = standard materials with NBR piston seal and NBR rod seal (FKM rod seal on request). Type of mounting: with front rear flange, foot mounting, with front/rear/centre/swivel trunnion. Strokes, min - max: 10 to 2500mm. Operating temperature: 0ﾰC to +80ﾰC (with dry air: +20ﾰC). Operating pressure: 1 to 10 bar (standard versions). 0.1 to 10 bar (low friction version). Speed: 10 to 1000mm/sec, no load (standard versions). 5 to 1000mm/sec, no load (low friction version). Fluid: filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. Full range of ISO cylinders available including large bore (160, 200 and 250mm) and stainless steel options. Non stock strokes available on request.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 61M2P080A0080 Range of Double Acting.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS1841
