100R1AT-05-100

5/16" 100R1AT Hydraulic Hose

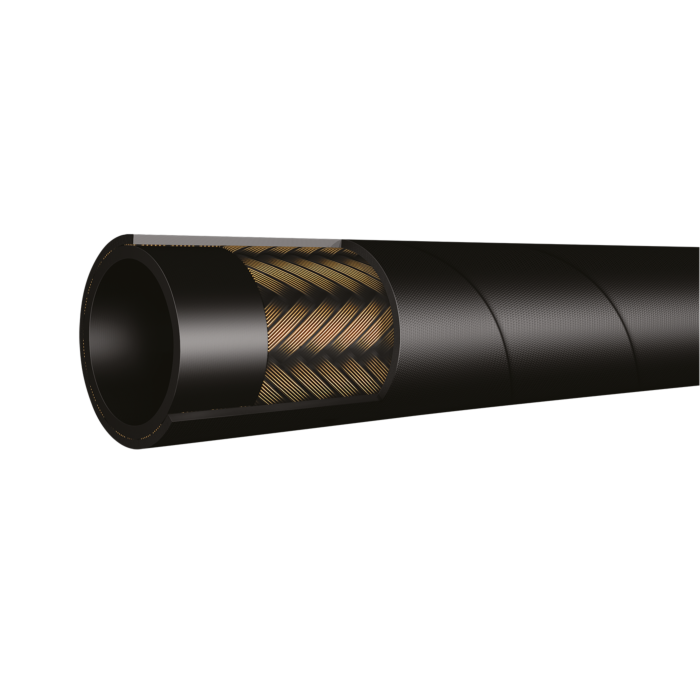

Application: Medium pressure hydraulic applications. Specification: DIN 20022, EN853 - 1 exceeds 100R1AT. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single steel wire braid. Outer coverr: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request
BearingShopUK holds a large stock of Hydraulic equipment, including the 100R1AT-05-100 Range of Steel Braided.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS5001
