VNC10007

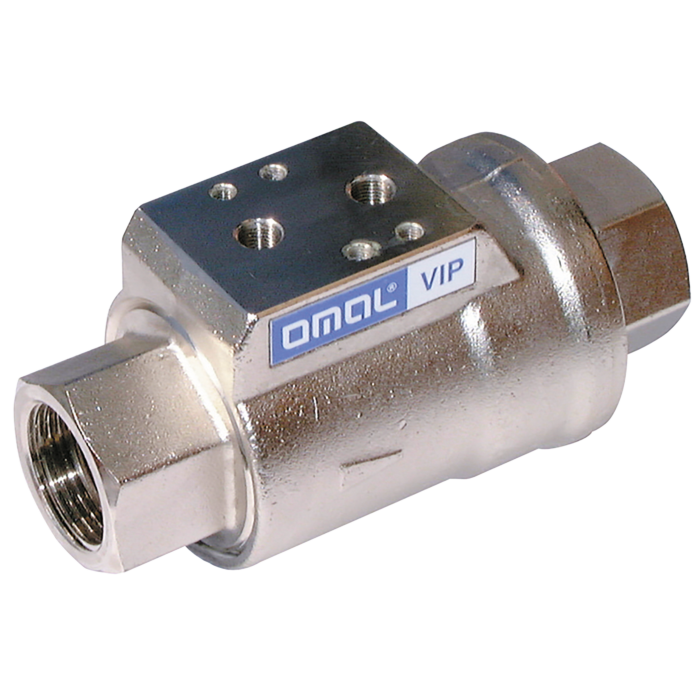

VIP VALV S/A BRASS NBR SEALS G1.1/4" 32B
Applications: Nitrile: Compatible with air, gas, oils, water etc. Viton:High compatibility with the majority of fluids, not advised for steam. Note: The compact design of a VIP valve with it's reduced size and weight allows it to be used in applications, where traditional actuated valve packages can not be utilised. The VIP valve has no external moving parts, which ensures their operation is quick and efficient, with out the safety Issues of the traditional actuated valve packages. The VIP valve with the approved gas threaded connections (UN1-ISO 7/1-DIN 2999) coupled with a NAMUR mounting plate makes this valve suitable for every possible plant application. The valve can be mounted in any position.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the VNC10007 Range of Pneumatic Actuator.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS862
