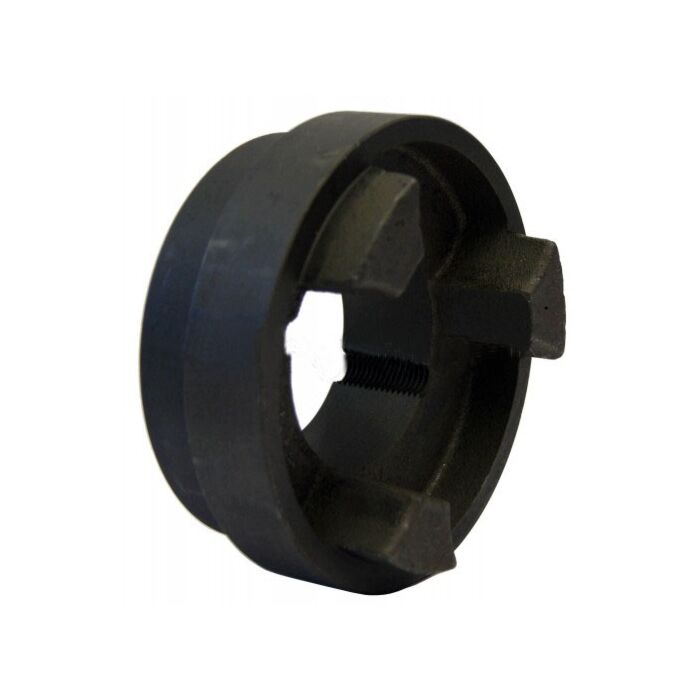

HRC150-F Drive Coupling
£19.56
£16.30
In stock
SKU
22187
Type: Half Body
Bore Type: Taperlock
To Suit Bush: 2012
Bush Inserts From: Inside
Bore Type: Taperlock
To Suit Bush: 2012
Bush Inserts From: Inside
HRC couplings consist of two halves with a star-shaped rubber unit in the centre. This is an excellent all-round coupling which is able to adapt to some imbalances.
seperatorThe HRC couplings are available pilot bored and bored for taperlock bushes in order to allow maximum flexibility in the choice of shaft diameters. The HRC couplings can be used at temperatures from -40 degrees to +100 degrees.
HRC couplings are easy to use and are stocked bored for taperlock bushes. As a result, they are easy to install and remove. In case of breakdowns, a new coupling can be installed quickly as it does not have to be bored to dimensions. You only have to choose the taperlock bushes for the shaft diameters on which to install the coupling.
HRC couplings are used in industry in all situations where two shafts are to be connected.
Technical Dimensions
| Nominal Torque (Nm) | 600 |
| Overall Diameter (A) | 150 |
| Hub Diameter (B) | 115 |
| Assemble Length (F) | 60.5 |
| Ring Diameter (E) | 62 |
| Ring Width (G) | 40.5 |
| Parallel Misalignment | 0.4 |
| Shoulder Width (D) | 23.5 |
| Hub Width (C) | 33.5 |
| Taperlock Bush Size | 2012 |
Assembled Sizes
| Assembled Length FF, FH, HH | 107.5 |
| Assembled Length FB, HB | 129.5 |
| Assembled Length BB | 152.5 |
