Imperial Spur Gears

Imperial Spur Gears

Of all the available gear types, Spur Gears or straight cut gears are the simplest option available in machining. Designed to radially transmit motion and power between moving shafts, Spur Gears are usually made up of a cylinder or disc with radially projecting teeth or cogs.

Special in form, Spur Gears are ideal for achieving an involute and constant drive ratio on machines. The edge of each gear tooth is straight and is aligned parallel to the machine's axis of rotations, meaning that Spur Gears can only be meshed together perfectly when they are fitted into parallel shafts.

BearingShopUK provides Spur Gears that have been manufactured from high grade steel. Available in several diametral pitches (DP’s) and with teeth to suit your applications, we provide Spur Gears available in 4, 6, 8, 10, 12, 16, 20, 24, and 32 DP’s. You will also find our Imperial Spur Gears available from 12 to 120 teeth.

For more Power Transmission or mechanical products like V Belts and V Pulley, Ball Bearings or any other products, please contact us for more information.

Items 1 to 25 of 166 total

per page
Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5

List  Grid

Set Descending Direction

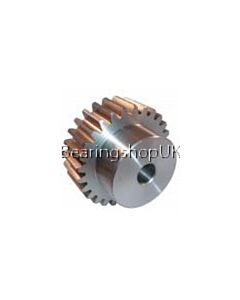

  1. 12 Tooth Imperial Spur Gear 4DP Steel

    12 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 3(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £67.80 Incl. VAT £81.36
  2. 14 Tooth Imperial Spur Gear 4DP Steel

    14 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 3.5(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £74.50 Incl. VAT £89.40
  3. 15 Tooth Imperial Spur Gear 4DP Steel

    15 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 3.75(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £80.00 Incl. VAT £96.00
  4. 16 Tooth Imperial Spur Gear 4DP Steel

    16 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 4(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £85.00 Incl. VAT £102.00
  5. 18 Tooth Imperial Spur Gear 4DP Steel

    18 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 4.5(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £88.30 Incl. VAT £105.96
  6. 20 Tooth Imperial Spur Gear 4DP Steel

    20 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 5(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £99.20 Incl. VAT £119.04
  7. 24 Tooth Imperial Spur Gear 4DP Steel

    24 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 6(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £117.40 Incl. VAT £140.88
  8. 28 Tooth Imperial Spur Gear 4DP Steel

    28 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 7(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.5(inch) Learn More
    Excl. VAT £125.40 Incl. VAT £150.48
  9. 32 Tooth Imperial Spur Gear 4DP Steel

    32 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 8(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.75(inch) Learn More
    Excl. VAT £147.60 Incl. VAT £177.12
  10. 36 Tooth Imperial Spur Gear 4DP Steel

    36 Tooth Imperial Spur Gear 4DP Steel

    Pitch Circle Diameter: 9(inch)
    Tooth Width: 1.5(inch)
    Overall Length: 2.75(inch) Learn More
    Excl. VAT £160.50 Incl. VAT £192.60
  11. 12 Tooth Imperial Spur Gear 6DP Steel

    12 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 2(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £40.70 Incl. VAT £48.84
  12. 14 Tooth Imperial Spur Gear 6DP Steel

    14 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 2.33(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £48.40 Incl. VAT £58.08
  13. 15 Tooth Imperial Spur Gear 6DP Steel

    15 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 2.5(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £52.90 Incl. VAT £63.48
  14. 16 Tooth Imperial Spur Gear 6DP Steel

    16 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 2.66(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £62.50 Incl. VAT £75.00
  15. 18 Tooth Imperial Spur Gear 6DP Steel

    18 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 3(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £72.20 Incl. VAT £86.64
  16. 20 Tooth Imperial Spur Gear 6DP Steel

    20 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 3.33(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £76.80 Incl. VAT £92.16
  17. 21 Tooth Imperial Spur Gear 6DP Steel

    21 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 3.5(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £78.10 Incl. VAT £93.72
  18. 24 Tooth Imperial Spur Gear 6DP Steel

    24 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 4(inch)
    Tooth Width: 1.5(inch)
    Overall Length:2.5(inch) Learn More
    Excl. VAT £82.90 Incl. VAT £99.48
  19. 27 Tooth Imperial Spur Gear 6DP Steel

    27 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 4.5(inch)
    Tooth Width: 1.5(inch)
    Overall Length:3(inch) Learn More
    Excl. VAT £94.70 Incl. VAT £113.64
  20. 28 Tooth Imperial Spur Gear 6DP Steel

    28 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 4.66(inch)
    Tooth Width: 1.5(inch)
    Overall Length:3(inch) Learn More
    Excl. VAT £99.10 Incl. VAT £118.92
  21. 30 Tooth Imperial Spur Gear 6DP Steel

    30 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 5(inch)
    Tooth Width: 1.5(inch)
    Overall Length:3(inch) Learn More
    Excl. VAT £106.30 Incl. VAT £127.56
  22. 32 Tooth Imperial Spur Gear 6DP Steel

    32 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 5.33(inch)
    Tooth Width: 1.5(inch)
    Overall Length:3(inch) Learn More
    Excl. VAT £111.80 Incl. VAT £134.16
  23. 36 Tooth Imperial Spur Gear 6DP Steel

    36 Tooth Imperial Spur Gear 6DP Steel

    Pitch Circle Diameter: 6(inch)
    Tooth Width: 1.5(inch)
    Overall Length:3(inch) Learn More
    Excl. VAT £128.20 Incl. VAT £153.84
  24. 12 Tooth Imperial Spur Gear 8DP Steel

    12 Tooth Imperial Spur Gear 8DP Steel

    Pitch Circle Diameter: 1.5(inch)
    Tooth Width: 1.25(inch)
    Overall Length:2(inch) Learn More
    Excl. VAT £29.90 Incl. VAT £35.88
  25. 14 Tooth Imperial Spur Gear 8DP Steel

    14 Tooth Imperial Spur Gear 8DP Steel

    Pitch Circle Diameter: 1.75(inch)
    Tooth Width: 1.25(inch)
    Overall Length:2(inch) Learn More
    Excl. VAT £32.30 Incl. VAT £38.76
