Tensioner Arms

Tensioner Arms

In Power Transmission systems, chains and sprockets work together to efficiently transmit power. Mechanical tension - or "load" in more familiar terms - is kept to make sure that the mechanical belts and pulley system are in contact with one another. One of the best examples of a Power Transmission system using tensioners is V Belts on a V Pulley.

In general, tensioners are devices used to apply force on an object to retain tension. Tensioners are usually adjustable tension providers depending on the type of driving force needed. Belts and chains require different amounts of tension for different types of application.

BearingShopUK offers three parts of tensioner for your mechanical needs:

Tension Arms

Tensioner Sprockets

Tension Rollers

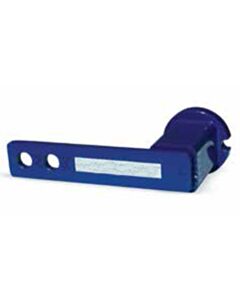

Tension Arms are typically used for standard tensioning on most types of Power Transmission systems, such as a Roller Chain and Belt drive system. The “arms” refer to a thin, flat strip of steel with the tensioner attached to one end and another end used for mounting. Tensioner Sprockets are designed for chain drives with the sprocket wheel running on Ball Bearings. Just like Tensioner Sprockets, Tension Rollers are ideal mechanical belt tensioners, made up of high-grade industrial plastic with Ball Bearings.

For more information on Tensioners or any of our mechanical products, Contact Us.

6 Item(s)

per page

List  Grid

Set Descending Direction
  1. CRTE2 Tensioner Arm

    SE11/TE2 Tensioner Arm

    Force in N From 0-32: 0-90
    Length: 90mm
    Weight: 0.25kg
    Width: 51mm

    Learn More
    Excl. VAT £17.41 Incl. VAT £20.89
  2. CRTE3 Tensioner Arm

    SE15/TE3 Tensioner Arm

    Force in N From 0-32: 0-140
    Length: 112.5mm
    Weight: 0.45kg
    Width: 64mm

    Learn More
    Excl. VAT £20.64 Incl. VAT £24.77
  3. CRTE4 Tensioner Arm

    SE18/TE4 Tensioner Arm

    Force in N From 0-32: 0-320
    Length: 115mm
    Weight: 0.75kg
    Width: 79mm

    Learn More
    Excl. VAT £24.61 Incl. VAT £29.53
  4. CRTE5 Tensioner Arm

    SE27/TE5 Tensioner Arm

    Force in N From 0-32: 0-820
    Length: 155mm
    Weight: 1.80kg
    Width: 108mm

    Learn More
    Excl. VAT £38.20 Incl. VAT £45.84
  5. CRTE6 Tensioner Arm

    SE38/TE6 Tensioner Arm

    Force in N From 0-32: 0-1500
    Length: 205mm
    Weight: 3.70kg
    Width: 140mm

    Learn More
    Excl. VAT £65.21 Incl. VAT £78.25
  6. CRTE7 Tensioner Arm

    SE45/TE7 Tensioner Arm

    Force in N From 0-32: 0-2500
    Length: 260mm
    Weight: 6.5kg
    Width: 200mm

    Learn More
    Excl. VAT £90.70 Incl. VAT £108.84
