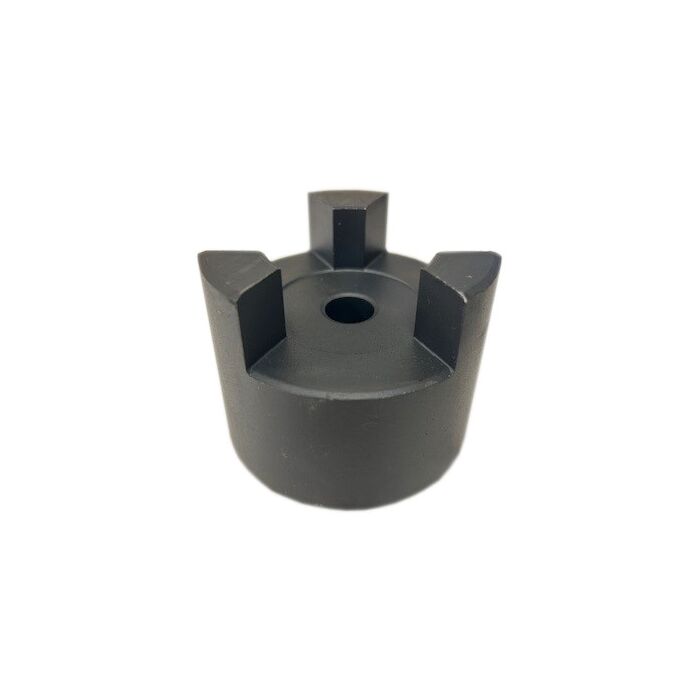

L225 Jaw Coupling Complete
£137.26
£114.38
In stock
SKU
35567
Overall Diameter: 127mm
Assembled Length: 153mm
Hub Diameter: 108mm
Set Screw Size: M12
Assembled Length: 153mm
Hub Diameter: 108mm
Set Screw Size: M12
PLEASE NOTE: Machining service takes 1-2 weeks to complete before dispatch.
A jaw coupling is a type of motion control (servo) coupling designed to transmit torque by connecting two shafts while damping system vibrations, which protects other components from damage. Jaw couplings are composed of three parts including two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider".
seperatorA jaw coupling is a type of motion control (servo) coupling designed to transmit torque by connecting two shafts while damping system vibrations, which protects other components from damage. Jaw couplings are composed of three parts including two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider".
Technical Dimensions
| Nominal Torque (Nm) | 280 |
| Maximum Speed rev/min | 3600 |
| Pilot Bore (A) | 19 |
| Maximum Bore (A) | 60 |
| Overall Diameter (B) | 127 |
| Assembled Length(L) | 153 |
| Hub Width (C) | 64 |
| Hub Diameter (D) | 108 |
| Set Screw Position (F) | 25.5 |
| Set Screw Size | M12 |
