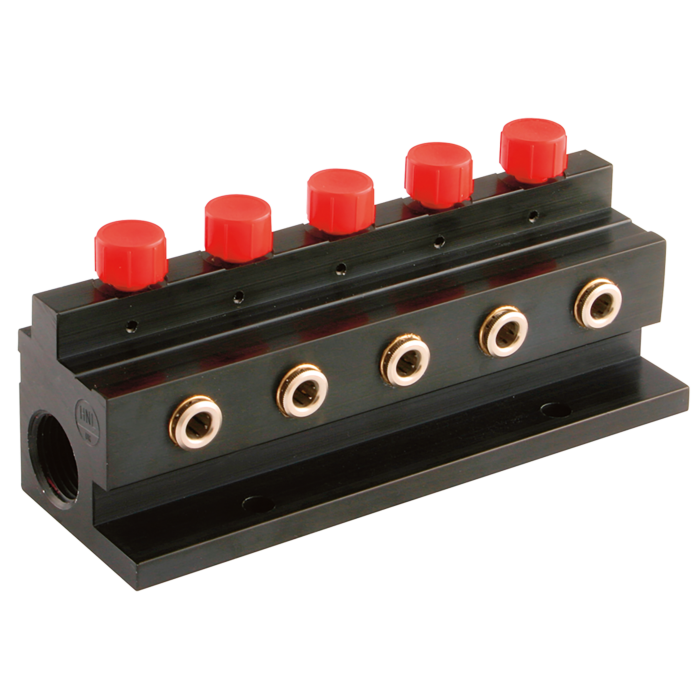

971-05-256

1/2" BSPP IN X 5 WAY 6MM PUSH-IN OUT
Replace complex assemblies of valves and fittings with anodised aluminium Minifolds. Each Minifold comprises of a number of valved outlets on a common header. Minifold blocks have tapped inlet connections at both ends - connect to one and plug the other or connect Minifolds in series. Specifications: Series 971: Nominal Bore 18mm, 1/2"" BSP Female or 1/2"" NPT Female inlets. 1/4"" BSP Female or 1/4"" NPT Female or 6mm push-in outlets. Series 975: Nominal Bore 25mm, 3/4" BSP Female or 3/4" NPT Female Inlets, 3/8" BSP Female or 3/8" NPT Female Outlets, Material: Blocks: Anodised aluminium, Valve Spindles: Thermoplastic (red for BSP, grey for NPT), Seals: Nitrile, Push-in fittings: Plsted Brass
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 971-05-256 Range of BSPP Port.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS10556
