FLOECV14400

14-28 ECO GAS SPRING 400MM STRAIGHTOKE -2500N

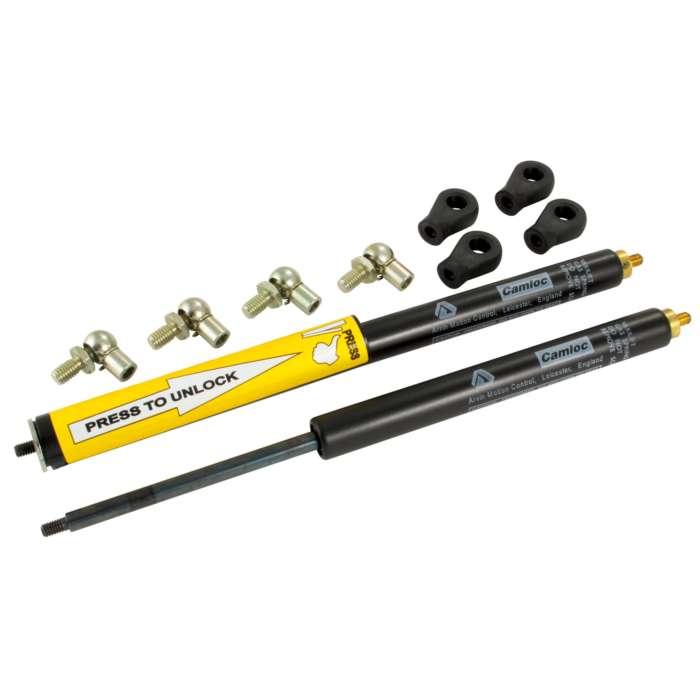

Econoloc gas springs eliminate the need for separate safety rods in critical lift-assist applications. They positively lock when fully extended, protecting the operator from potential injury in the event of overload or misuse. Type: Variable force. Rod Diameter: 14mm. Tube Diameter: 28mm. Force Range: 200-2500N. Material: Nitrided steel piston rod, black powder coated steel tube, nylon/steel end connectors. Boxed as a pair; comprising 1 x Econoloc safety shroud and 1 x standard. Swift & Sure spring, they come fitted with FLO-B6 end fittings and are gassed to maximum pressure. They are supplied with instructions and an allen key for adjusting force in-situ. End to end measurement - shoulder to shoulder - not including the threaded ends. From the end of the tube (thicker part) to the end of the rod (thinner part).
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the FLOECV14400 Range of Push x Pull.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
