1210 1.1/4" Taperlock Bush
£4.69
£3.91
In stock
SKU
5179
To Suit Shaft Size: 1.1/4"
Bush Series: 1210
Large End Diameter: 47.62mm
Bush Length: 25.4mm
Keyway Size: 0.312in
Bush Series: 1210
Large End Diameter: 47.62mm
Bush Length: 25.4mm
Keyway Size: 0.312in

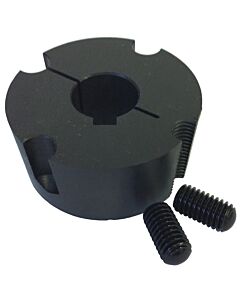

Taperlock Bushes are used to secure Taperlock Pulleys, Sprockets or Couplings to Shafts. This 1210 Series Taperlock Bush suits a shaft size of 31.75mm (1.1/4").
The Taperlock Bush fits into the hub with 2 grub screws, as the grub screws are tightened the Taperlock compresses onto the shaft and keyway securing the Pulley/Sprocket. To remove the Bush, you remove the 2 grub screws and screw one back into the third hole, lifting the Bush out.
Our Taperlock Bushes are made from Cast Iron, however Mild Steel or Stainless Steel can be supplied but are generally considerably more expensive.
**Please Note: Taperlock Bushes are meant for parallel shafts, not tapered shafts.
Please watch the short video below for more information:
The Taperlock Bush fits into the hub with 2 grub screws, as the grub screws are tightened the Taperlock compresses onto the shaft and keyway securing the Pulley/Sprocket. To remove the Bush, you remove the 2 grub screws and screw one back into the third hole, lifting the Bush out.
Our Taperlock Bushes are made from Cast Iron, however Mild Steel or Stainless Steel can be supplied but are generally considerably more expensive.
**Please Note: Taperlock Bushes are meant for parallel shafts, not tapered shafts.
Please watch the short video below for more information:
